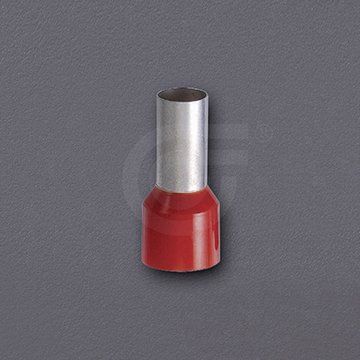

Insulated Wire Ferrules
Model :CE
Cord End Terminals provides an effective way not only to ensure the wire will be secure with all the lines enclosed by the terminal end but also provide a convenient way to mark and distinguish wires from one another.
– Insulation housing conforms to DIN color requirements.
– Meets DIN standards for single wire containment.
– Funnel entry for faster insertion and lower installed cost.
– Designed with a seamless barrel to contain loose wire strands for superior terminations.
– Ease of inserting wire into terminal block.
– Suitable for limited space panel applications.
– Multiple pin lengths available for a variety of terminal blocks.
Material : Copper tube with Tin Plated end sleeves with insulation Polyamide 6.6
Color : Please refer to the specification chart below
Specification Information
Certificate
Specifications

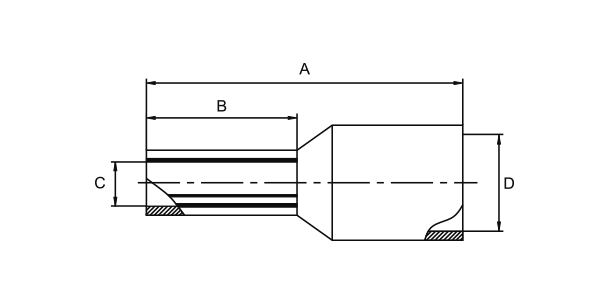

| Conductor | Dimension | tools | |||||||
| W system | T system | Din system | sq. mm | A.W.G | A mm | B mm | Cmm | Dmm | |
| CE002506W(light blue) | CE002506T(purple) | 0.25 | 24 | 10 | 6 | 0.75 | 1.9 | GIT-510 | |
| CE002508W(light blue) | CE002508T(purple) | 0.25 | 24 | 12 | 8 | 0.75 | 1.9 | GIT-510 | |
| CE003406W(turquoise) | CE003406T(pink) | 0.34 | 22 | 10 | 6 | 0.8 | 1.9 | GIT-510 | |
| CE003408W(turquoise) | CE003408T(pink) | 0.34 | 22 | 12 | 8 | 0.8 | 1.9 | GIT-510 | |
| CE005006W(orange) | CE005006T(white) | CE005006D(white) | 0.5 | 20 | 12 | 6 | 1 | 2.6 | GIT-510 GIT-516E1 |
| CE005008W(orange) | CE005008T(white) | CE005008D(white) | 0.5 | 20 | 14 | 8 | 1 | 2.6 | GIT-510 GIT-516E2 |
| CE005010W(orange) | CE005010T(white) | CE005010D(white) | 0.5 | 20 | 16 | 10 | 1 | 2.6 | GIT-510 GIT-516E3 |
| CE00706W(white) | CE007506T(light blue) | CE007506D(grey) | 0.75 | 19 | 12 | 6 | 1.2 | 2.8 | GIT-510 GIT-516E4 |
| CE007508W(white) | CE007508T(light blue) | CE007508D(grey) | 0.75 | 19 | 14 | 8 | 1.2 | 2.8 | GIT-510 GIT-516E5 |
| CE007510W(white) | CE007510T(light blue) | CE007510D(grey) | 0.75 | 19 | 16 | 10 | 1.2 | 2.8 | GIT-510 GIT-516E6 |
| CE007512W(white) | CE007512T(light blue) | CE007512D(grey) | 0.75 | 19 | 18 | 12 | 1.2 | 2.8 | GIT-510 GIT-516E7 |
| CE010006W(yellow) | CE010006T(red) | CE01006D(red) | 1 | 18 | 12 | 6 | 1.4 | 3 | GIT-510 GIT-516E8 |
| CE010008W(yellow) | CE010008T(red) | CE010008D(red) | 1 | 18 | 14 | 8 | 1.4 | 3 | GIT-510 GIT-516E9 |
| CE010010W(yellow) | CE010010T(red) | CE010010D(red) | 1 | 18 | 16 | 10 | 1.4 | 3 | GIT-510 GIT-516E10 |
| CE010012W(yellow) | CE010012T(red) | CE010012D(red) | 1 | 18 | 18 | 12 | 1.4 | 3 | GIT-510 GIT-516E11 |
| CE015008W(red) | CE015008T(black) | CE015008D(black) | 1.5 | 16 | 14 | 8 | 1.7 | 3.5 | GIT-510 GIT-516E12 |
| CE015010W(red) | CE015010T(black) | CE015010D(black) | 1.5 | 16 | 16 | 10 | 1.7 | 3.5 | GIT-510 GIT-516E13 |
| CE015012W(red) | CE015012T(black) | CE015012D(black) | 1.5 | 16 | 18 | 12 | 1.7 | 3.5 | GIT-510 GIT-516E14 |
| CE015018W(red) | CE015018T(black) | CE015018D(black) | 1.5 | 16 | 24 | 18 | 1.7 | 3.5 | GIT-510 GIT-516E15 |
| CE025008W(blue) | CE025008T(grey) | CE025008D(blue) | 2.5 | 14 | 14 | 8 | 2.2 | 4.2 | GIT-510 GIT-516E16 |
| CE025010W(blue) | CE025010T(grey) | CE025010D(blue) | 2.5 | 14 | 16 | 10 | 2.2 | 4.2 | GIT-510 GIT-516E17 |
| CE025012W(blue) | CE025012T(grey) | CE025012D(blue) | 2.5 | 14 | 18 | 12 | 2.2 | 4.2 | GIT-510 GIT-516E18 |
| CE025018W(blue) | CE025018T(grey) | CE025018D(blue) | 2.5 | 14 | 24 | 18 | 2.2 | 4.2 | GIT-510 GIT-516E19 |
| CE040010W(gray) | CE040010T(orange) | CE040010D(grey) | 4 | 12 | 17 | 10 | 2.8 | 4.8 | GIT516E1 |
| CE040012W(gray) | CE040012T(orange) | CE040012D(grey) | 4 | 12 | 20 | 12 | 2.8 | 4.8 | GIT516E2 |
| CE040018W(gray) | CE040018T(orange) | CE040018D(grey) | 4 | 12 | 26 | 18 | 2.8 | 4.8 | GIT516E3 |
| CE060012W(black) | CE060012T(green) | CE060012D(yellow) | 6 | 10 | 20 | 12 | 3.5 | 6.3 | GIT-516E2 |
| CE060018W(black) | CE060018T(green) | CE060018D(yellow) | 6 | 10 | 26 | 18 | 3.5 | 6.3 | GIT-516E3 |
| CE100012W(white) | CE100012T(dark red) | CE100012D(red) | 10 | 8 | 22 | 12 | 4.5 | 7.6 | GIT-516E2 GIT-516E3 |
| CE100018W(white) | CE100018T(dark red) | CE100018D(red) | 10 | 8 | 28 | 18 | 4.5 | 7.6 | GIT-516E2 GIT-516E4 |
| CE160012W(green) | CE160012T(ivory) | CE160012D (blue) | 16 | 6 | 22 | 12 | 5.8 | 8.8 | GIT-516E2 GIT-516E5 |
| CE160018W(green) | CE160018T(ivory) | CE160018D (blue) | 16 | 6 | 28 | 18 | 5.8 | 8.8 | GIT-516E2 GIT-516E6 |
| CE250016W(dark red) | CE250016T(black) | CE250016D (yellow) | 25 | 4 | 30 | 16 | 7.3 | 11.2 | GIT-516E3 GIT-516E4 |
| CE250018W(dark red) | CE250018T(black) | CE250018D (yellow) | 25 | 4 | 32 | 18 | 7.3 | 11.2 | GIT-516E3 GIT-516E5 |
| CE250022W(dark red) | CE250022T(black) | CE250022D(yellow) | 25 | 4 | 36 | 22 | 7.3 | 11.2 | GIT-516E3 GIT-516E6 |
| CE350016W(ivory) | CE350016T(red) | CE350016D (red) | 35 | 2 | 30 | 16 | 8.3 | 12.7 | GIT-516E4 |
| CE350018W(ivory) | CE350018T(red) | CE350018D(red) | 35 | 2 | 32 | 118 | 8.3 | 12.7 | GIT-516E5 |
| CE350025W(ivory) | CE350025T(red) | CE350025D(red) | 35 | 2 | 39 | 25 | 8.3 | 12.7 | GIT-516E6 |
| CE5000020W(Olive) | CE500020T(blue) | CE50020D (blue) | 50 | 1 | 36 | 20 | 10.3 | 15 | GIT-516E4 GIT-518 |
| CE500025W(Olive) | CE500025T(blue) | CE500025D(blue) | 50 | 1 | 40 | 25 | 10.3 | 15 | GIT-516E4 GIT-519 |
| CE700021W(yellow) | CE700021T(yellow) | CE700021D (yellow) | 70 | 2/0 | 37 | 21 | 13.5 | 16 | GIT-518 |
| CE950025W(red) | CE950025T(red) | CE950025D(red) | 95 | 3/0 | 44 | 25 | 14.7 | 18 | GIT-518 |
| CE120027W(blue) | CE120027T(blue) | CE120027D(blue) | 120 | 4/0 | 48 | 27 | 16.7 | 20 | GIT-518 |
| CE150032W(yellow) | CE150032T(yellow) | CE150032D (yellow) | 120 | 250 | 58 | 32 | 19.5 | 23 | GIT-518 |
