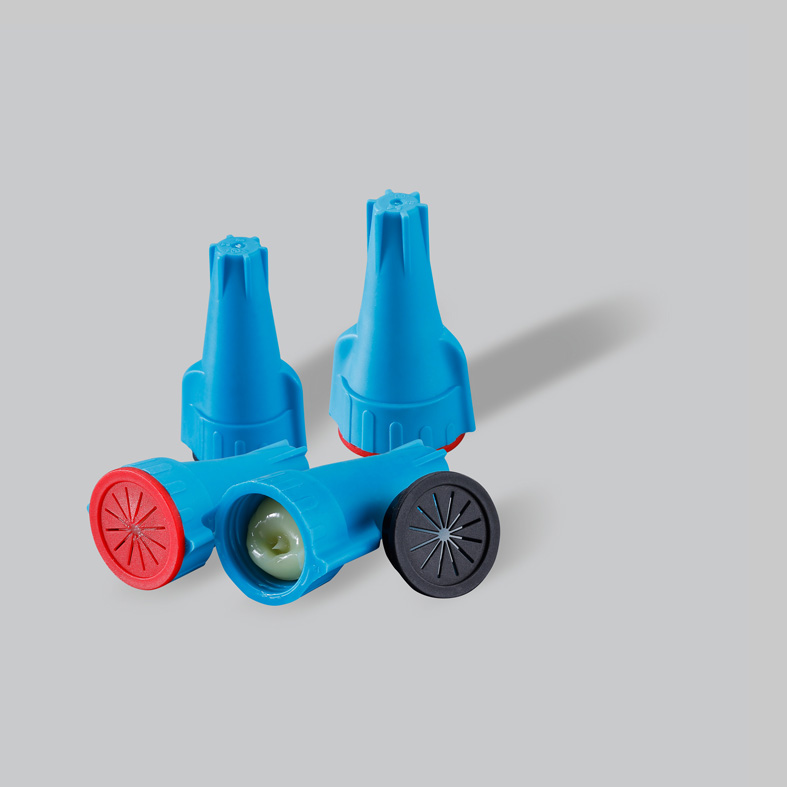

Waterproof Wire Connector
Model : R3-R / R6-R
- Tough thermoplastic, UL 94V-2 flame-retardant shell for 105℃ (221℉).
- Rated to 600V max.
- Screw-on wire connectors pre-filled with dielectric silicone sealant. Comply with UL standard.
- Waterproof, dustproof and corrosion proof.
- For use in dry , damp, wet, bury locations.
- Easy to use wire connectors nuts.
- Not for use in continual submersion applications .
- One time use only. Do not Reuse Connector.
Specification Information
Certificate
Specifications

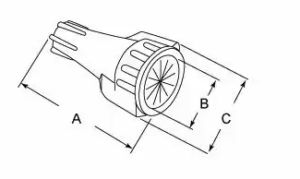

| Part No. | Color | Dimension mm(inch) | Suitable Wire | Temp Rating | Voltage | ||
| A | B | C | AWG | ||||
| R3-R | Blue/Red | 40.9(1.61) | 16.5(0.65) | 25.2(0.99) | 20-10 | 105°C (221°F) | 600V |
| R6-R | Blue/Black | 47.2(1.86) | 16.5(0.65) | 26.5(1.04) | 20-8 | 105°C (221°F) | 600V |
