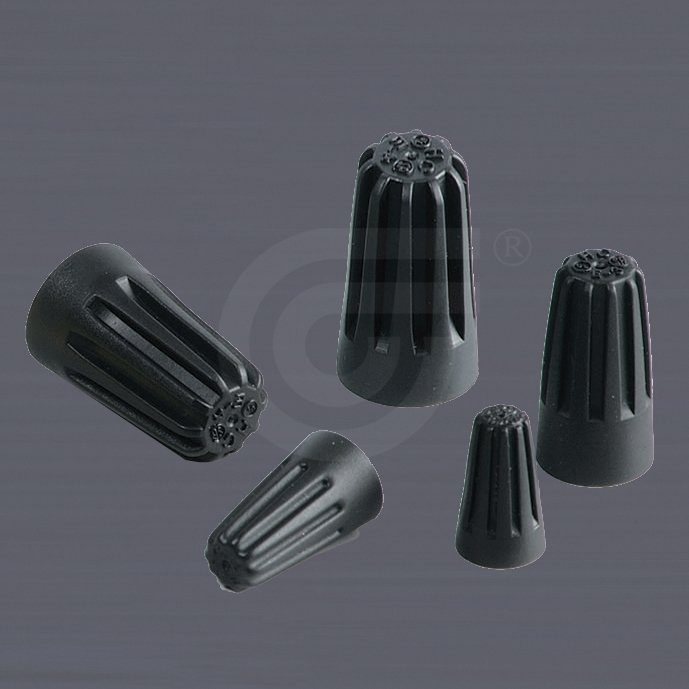

Twist-On High Temperature Wire Connectors
Model :E1B
Electrical wire connectors and tools are designed with features requested by electricians for construction, industrial, maintenance, OEM and irrigation applications.
All of the E series Wire Connector features plus:
– Black, thermoplastic shell designed to be used in high-wattage light fixtures and signs where the extreme heat build-up commonly found.
– UL Listed to 150°C (302°F).
– Four models to cover wire ranges from 22 through 10 AWG.
Material : UL approved PBT, steel spring
Color : Black
Application : Automation, Electrical Wiring
庫存單位 E1B 分類 Twist-On Wire Connectors, Wire Connection Features: Heat-resistant, Ultra heat-resistant
Specification Information
Certificate
Specifications
Part.No | color | Dimension | suitable | temp Rating | Voltage | |||||
A mm | B mm | C mm | D mm | E mm | AWG | mm2 | ||||
E1B | Black | 5 | 6 | 8.5 | 3.5 | 3.5 | 22-18 | 0.5-0.75 | 150°C (302°F) | 300V |
E2B | Black | 6 | 7.5 | 10.1 | 6.5 | 6.5 | 22-14 | 0.5-2.5 | 150°C (303°F) | 300V |
E3B | Black | 6.2 | 8.2 | 11.2 | 8 | 8 | 22-14 | 0.5-2.5 | 150°C (304°F) | 300V |
E4B | Black | 8.7 | 10.5 | 13.7 | 7.5 | 7.5 | 18-10 | 1.75-6 | 150°C (305°F) | 300V |
