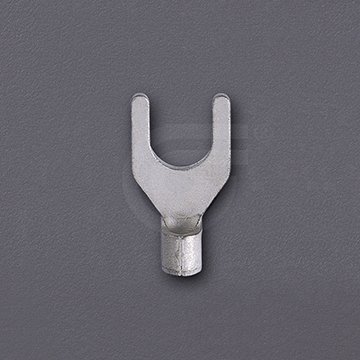

Non-Insulated Spade Terminals
Model :Y1.25
Spade Terminals feature a standard style tongue and are built to ensure secure connectivity.
– Fork design provides for fast and easy installation without removing the fastener.
– Brazed seam protects terminal barrel from splitting during the crimping process.
Material : Copper tube with tin plated
Color : Please refer to the specification chart below
Specification Information
Certificate
Specifications

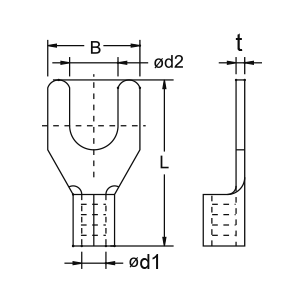

| Part.No | Dimension | Wire Range | |||||
| d1 mm | d2 mm | B mm | L mm | t mm | AWG | mm2 | |
| Y1.25-3B | 1.9 | 3.2 | 5.7 | 16.0 | 7.0 | 22-16 | 0.5-1.5 |
| Y1.25-3.5SB | 1.9 | 3.7 | 5.7 | 16.0 | 7.0 | 22-16 | 0.5-1.5 |
| Y1.25-3.5B | 1.9 | 3.7 | 6.2 | 16.0 | 7.0 | 22-16 | 0.5-1.5 |
| Y1.25-4SB | 1.9 | 4.3 | 6.4 | 16.0 | 7.0 | 22-16 | 0.5-1.5 |
| Y1.25-4B | 1.9 | 4.3 | 7.2 | 16.0 | 7.0 | 22-16 | 0.5-1.5 |
| Y1.25-5B | 1.9 | 5.3 | 8.0 | 16.0 | 7.0 | 22-16 | 0.5-1.5 |
| Y1.25-6B | 1.9 | 6.4 | 10.7 | 17.0 | 7.0 | 22-16 | 0.5-1.5 |
| Y1.25-6SB | 1.9 | 6.4 | 9.3 | 17.0 | 7.0 | 22-16 | 0.5-1.5 |
| Y1.25-8B | 1.9 | 8.4 | 13.5 | 22.1 | 7.0 | 22-16 | 0.5-1.5 |
| Y2-3B | 2.5 | 3.2 | 5.7 | 16.0 | 8.0 | 16-14 | 1.5-2.5 |
| Y2-3.5SB | 2.5 | 3.7 | 5.7 | 16.0 | 8.0 | 16-14 | 1.5-2.5 |
| Y2-3.5B | 2.5 | 3.7 | 6.2 | 16.0 | 8.0 | 16-14 | 1.5-2.5 |
| Y2-4SB | 2.5 | 4.3 | 6.4 | 16.0 | 8.0 | 16-14 | 1.5-2.5 |
| Y2-4B | 2.5 | 4.3 | 7.2 | 16.0 | 8.0 | 16-14 | 1.5-2.5 |
| Y2-5B | 2.5 | 5.3 | 8.0 | 16.0 | 8.0 | 16-14 | 1.5-2.5 |
| Y2-6B | 2.5 | 6.4 | 10.7 | 17.0 | 8.0 | 16-14 | 1.5-2.5 |
| Y2-6SB | 2.5 | 6.4 | 9.3 | 17.0 | 8.0 | 16-14 | 1.5-2.5 |
| Y2-8B | 2.5 | 8.4 | 13.5 | 22.1 | 8.0 | 16-14 | 1.5-2.5 |
| Y3.5-3.5B | 3.4 | 3.7 | 7.3 | 18.0 | 8.0 | 14-12 | 2.5-4 |
| Y3.5-4B | 3.4 | 4.3 | 8.0 | 18.0 | 8.0 | 14-12 | 2.5-4 |
| Y3.5-5B | 3.4 | 5.3 | 8.0 | 18.0 | 8.0 | 14-12 | 2.5-4 |
| Y5.5-3B | 3.6 | 3.2 | 7.3 | 19.5 | 10.0 | 12-10 | 4-6 |
| Y5.5-3.5SB | 3.6 | 3.7 | 6.3 | 19.5 | 10.0 | 12-10 | 4-6 |
| Y5.5-3.5B | 3.6 | 3.7 | 8.1 | 18.5 | 10.0 | 12-10 | 4-6 |
| Y5.5-4B | 3.6 | 4.3 | 8.2 | 19.5 | 10.0 | 12-10 | 4-6 |
| Y5.5-4SB | 3.6 | 4.3 | 6.3 | 19.5 | 10.0 | 12-10 | 4-6 |
| Y5.5-5B | 3.6 | 5.3 | 9.0 | 19.5 | 10.0 | 12-10 | 4-6 |
| Y5.5-6B | 3.6 | 6.4 | 12.0 | 23.1 | 10.0 | 12-10 | 4-6 |
| Y5.5-6SB | 3.6 | 6.4 | 9.0 | 23.0 | 10.0 | 12-10 | 4-6 |
| Y5.5-8B | 3.6 | 8.4 | 13.5 | 25.0 | 10.0 | 12-10 | 4-6 |
