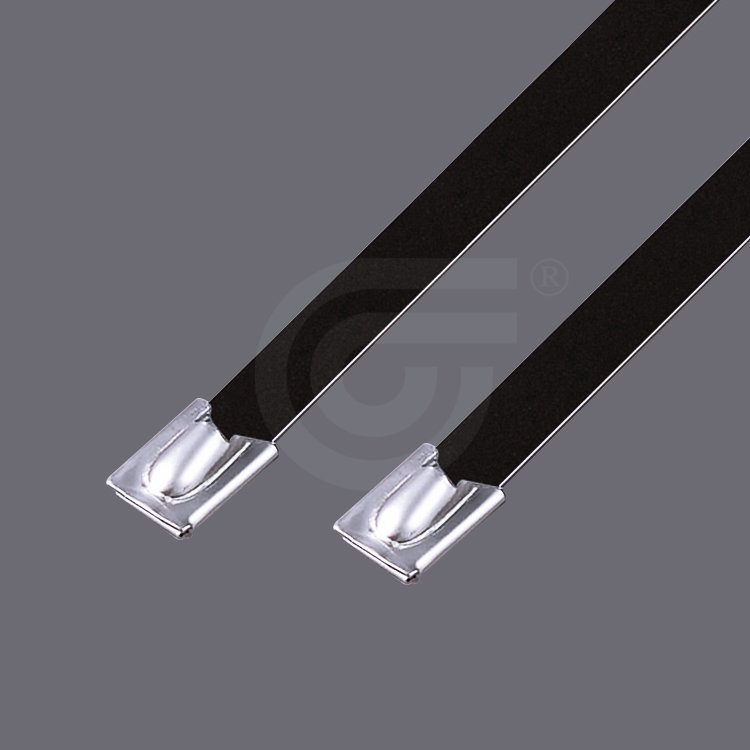

Ball Lock Type Stainless Steel Epoxy
Model :MLG-E
– Stainless steel ties are designed to secure hoses, cables, poles, pipes, and more when harsh environmental conditions may adversely affect the bundling application and used where corrosion, vibration, weathering, radiation, and temperature extremes are a concern, stainless steel ties can be used in virtually any indoor, outdoor, and underground application.
– Self-locking, ball bearing mechanism for quick and easy installation
– Ideal for petrochemical, industries, power stations, mining, ship-building, offshore, and other aggressive environments
– Plastic coating (Epoxy) provides additional edge protection and prevents corrosion between dissimilar metals
– Smooth surfaces and rounded edges assure to protect the cables and worker safety
– UV resistant, halogen-free material
– All lengths are available
Material : SS304 / SS316
Color : Black
Part.No | Length | Width | Thickness | Max.Bundle Dia. | Min. Loop tensile strength | operating temperature | ||||||
mm | inch | mm | inch | mm | inch | mm | inch | kgf | lbf | Max. | Min. | |
MLG-130STE | 129 | 5.08 | 4.45 | 0.18 | 0.35 | 0.014 | 33 | 1.3 | 45.4 | 100 | 150°C 302°F | -80°C -112°F |
MLG-200STE | 200 | 7.87 | 4.45 | 0.18 | 0.35 | 0.014 | 50 | 1.97 | 45.4 | 100 | 150°C 302°F | -80°C -112°F |
MLG-300STE | 300 | 11.81 | 4.45 | 0.18 | 0.35 | 0.014 | 76 | 2.99 | 45.4 | 100 | 150°C 302°F | -80°C -112°F |
MLG-370STE | 370 | 14.57 | 4.45 | 0.18 | 0.35 | 0.014 | 102 | 4.02 | 45.4 | 100 | 150°C 302°F | -80°C -112°F |
MLG-520STE | 520 | 20.47 | 4.45 | 0.18 | 0.35 | 0.014 | 156 | 6.14 | 45.4 | 100 | 150°C 302°F | -80°C -112°F |
MLG-680STE | 680 | 26.77 | 4.45 | 0.18 | 0.35 | 0.014 | 207 | 8.15 | 45.4 | 100 | 150°C 302°F | -80°C -112°F |
MLG-840STE | 840 | 33.07 | 4.45 | 0.18 | 0.35 | 0.014 | 257 | 10.1 | 45.4 | 100 | 150°C 302°F | -80°C -112°F |
MLG-1050STE | 1050 | 41.34 | 4.45 | 0.18 | 0.35 | 0.014 | 319 | 12.56 | 45.4 | 100 | 150°C 302°F | -80°C -112°F |
MLG-200HDE | 197 | 7.76 | 7.96 | 0.31 | 0.35 | 0.014 | 50 | 1.97 | 113.4 | 250 | 150°C 302°F | -80°C -112°F |
MLG-300HDE | 300 | 11.81 | 7.96 | 0.31 | 0.35 | 0.014 | 76 | 2.99 | 113.4 | 250 | 150°C 302°F | -80°C -112°F |
MLG-370HDE | 368 | 14.49 | 7.96 | 0.31 | 0.35 | 0.014 | 102 | 4.02 | 113.4 | 250 | 150°C 302°F | -80°C -112°F |
MLG-450HDE | 450 | 17.72 | 7.96 | 0.31 | 0.35 | 0.014 | 135 | 5.31 | 113.4 | 250 | 150°C 302°F | -80°C -112°F |
MLG-500HDE | 500 | 19.69 | 7.96 | 0.31 | 0.35 | 0.014 | 150 | 5.93 | 113.4 | 250 | 150°C 302°F | -80°C -112°F |
MLG-680HDE | 680 | 26.77 | 7.96 | 0.31 | 0.35 | 0.014 | 207 | 8.15 | 113.4 | 250 | 150°C 302°F | -80°C -112°F |
MLG-720HDE | 720 | 28.35 | 7.96 | 0.31 | 0.35 | 0.014 | 216 | 8.5 | 113.4 | 250 | 150°C 302°F | -80°C -112°F |
MLG-840HDE | 840 | 33.07 | 7.96 | 0.31 | 0.35 | 0.014 | 257 | 10.1 | 113.4 | 250 | 150°C 302°F | -80°C -112°F |
MLG-1020HDE | 1020 | 40.16 | 7.96 | 0.31 | 0.35 | 0.014 | 312 | 12.3 | 113.4 | 250 | 150°C 302°F | -80°C -112°F |
MLG-1050HDE | 1050 | 41.34 | 7.96 | 0.31 | 0.35 | 0.014 | 319 | 12.56 | 113.4 | 250 | 150°C 302°F | -80°C -112°F |
