All Products

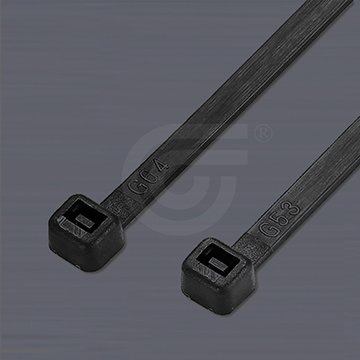

Weather Resistant Cable Ties
Model : GT-UV
– Internal serrations allowing for a positive hold onto cable and pipe bundles.
– The design of the head guarantees a high tensile strength while allowinga very low insertion force.
– Ultraviolet weather resistant tie for outdoor application.
Material : UL approved Polyamide 6.6, 94V-2
Color : Black
Specification Information
Certificate
Specifications
| Part.No | Length | Width | Max.Bundle Dia. | MIn. Loop tensile strength | operating temperature | |||||
| mm | inch | mm | inch | mm | inch | kgf | lbs | Max. | Min. | |
| GT-80M-UV | 80 | 3.15 | 2.4 | 0.09 | 15 | 0.59 | 8.1 | 18 | 85˚ C (185˚ F) | -40˚ C (-40˚ F) |
| GT-100M-UV | 100 | 3.94 | 2.5 | 0.1 | 22 | 0.87 | 8.1 | 18 | 85˚ C (185˚ F) | -40˚ C (-40˚ F) |
| GT-160M-UV | 160 | 6.3 | 2.5 | 0.1 | 40 | 1.57 | 8.1 | 18 | 85˚ C (185˚ F) | -40˚ C (-40˚ F) |
| GT-1501-UV | 150 | 5.91 | 3.6 | 0.14 | 35 | 1.38 | 18.2 | 40 | 85˚ C (185˚ F) | -40˚ C (-40˚ F) |
| GT-2001-UV | 200 | 7.87 | 3.6 | 0.14 | 53 | 2.09 | 18.2 | 40 | 85˚ C (185˚ F) | -40˚ C (-40˚ F) |
| GT-250ST-UV | 250 | 9.84 | 4.8 | 0.19 | 60 | 2.36 | 22.6 | 50 | 85˚ C (185˚ F) | -40˚ C (-40˚ F) |
| GT-300ST-UV | 300 | 11.81 | 4.8 | 0.19 | 76 | 2.99 | 22.6 | 50 | 85˚ C (185˚ F) | -40˚ C (-40˚ F) |
| GT-370ST-UV | 370 | 14.57 | 4.8 | 0.19 | 102 | 4.02 | 22.6 | 50 | 85˚ C (185˚ F) | -40˚ C (-40˚ F) |
| GT-430ST-UV | 430 | 16.93 | 4.8 | 0.19 | 110 | 4.33 | 22.6 | 50 | 85˚ C (185˚ F) | -40˚ C (-40˚ F) |
| GT-300HD-UV | 300 | 11.81 | 7.6 | 0.3 | 76 | 2.99 | 54.4 | 120 | 85˚ C (185˚ F) | -40˚ C (-40˚ F) |
| GT-370HD-UV | 370 | 14.57 | 7.6 | 0.3 | 102 | 4.02 | 54.4 | 120 | 85˚ C (185˚ F) | -40˚ C (-40˚ F) |
| GT-430HD-UV | 430 | 16.93 | 9 | 0.35 | 120 | 4.72 | 79.4 | 175 | 85˚ C (185˚ F) | -40˚ C (-40˚ F) |
| GT-530HD-UV | 526 | 20.71 | 9 | 0.35 | 140 | 5.51 | 79.4 | 175 | 85˚ C (185˚ F) | -40˚ C (-40˚ F) |
