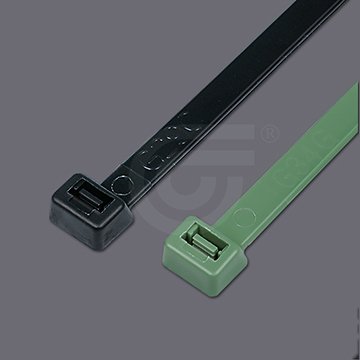

PP Cable Ties
Model : GT-PP
– Polypropylene Cable Ties are higher chemical resistance when exposed to various solutions of salts,acides and bases. Ideal for use in the chemical process industry and related harsh environments.
– Polypropylene is superior resistance to chemical attack.
– Low density of PP cable ties can float the surface of most liquids, so it is easily to seen and removed.
– Continuous operating temperatures up to 115 °C (239°F).
– One-piece construction for consistent performance and reliability.
– Internal serrations allowing for a positive hold.
– Material Flammability Rating: UL94HB.
Material : PP
Color : Green,Black
Application : Energy, Automation, Rail Transpotation, Electrical Wiring
Specification Information
Certificate
Specifications
Part.No | Length | Width | Max.Bundle Dia. | MIn. Loop tensile strength | operating temperature | |||||
mm | inch | mm | inch | mm | inch | kgf | lbs | Max. | Min. | |
GT-100M-PP | 100 | 3.94 | 2.5 | 0.1 | 22 | 0.87 | 5 | 11 | 115˚ C (239˚ F) | -40˚ C (-40˚ F) |
GT-140I-PP | 140 | 5.51 | 3.6 | 0.14 | 33 | 1.3 | 9.1 | 20 | 115˚ C (239˚ F) | -40˚ C (-40˚ F) |
GT-150I-PP | 150 | 5.91 | 3.6 | 0.14 | 35 | 1.38 | 9.1 | 20 | 115˚ C (239˚ F) | -40˚ C (-40˚ F) |
GT-190ST-PP | 190 | 7.48 | 4.8 | 0.19 | 46 | 1.81 | 14 | 30 | 115˚ C (239˚ F) | -40˚ C (-40˚ F) |
GT-200ST-PP | 200 | 7.87 | 4.8 | 0.19 | 50 | 1.97 | 14 | 30 | 115˚ C (239˚ F) | -40˚ C (-40˚ F) |
GT-300ST-PP | 300 | 11.81 | 4.8 | 0.19 | 76 | 2.99 | 14 | 30 | 115˚ C (239˚ F) | -40˚ C (-40˚ F) |
GT-370ST-PP | 370 | 14.57 | 4.8 | 0.19 | 102 | 4.02 | 14 | 30 | 115˚ C (239˚ F) | -40˚ C (-40˚ F) |
GT-200HD-PP | 200 | 7.87 | 7.6 | 0.3 | 50 | 1.97 | 27.2 | 60 | 115˚ C (239˚ F) | -40˚ C (-40˚ F) |
GT-240HD-PP | 242 | 9.53 | 7.6 | 0.3 | 63 | 2.48 | 27.2 | 60 | 115˚ C (239˚ F) | -40˚ C (-40˚ F) |
GT-300HD-PP | 300 | 11.81 | 7.6 | 0.3 | 76 | 2.99 | 27.2 | 60 | 115˚ C (239˚ F) | -40˚ C (-40˚ F) |
GT-370HD-PP | 370 | 14.57 | 7.6 | 0.3 | 102 | 4.02 | 27.2 | 60 | 115˚ C (239˚ F) | -40˚ C (-40˚ F) |
GT390HD-S-PP | 390 | 15.35 | 7.6 | 0.3 | 108 | 4.25 | 27.2 | 60 | 115˚ C (239˚ F) | -40˚ C (-40˚ F) |
