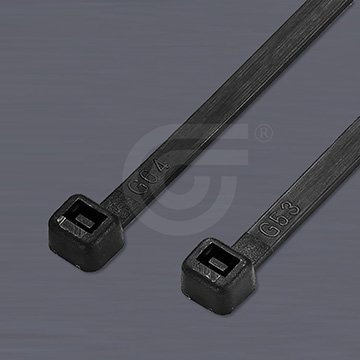

Polyamide 12 Cable Ties
Model : GT-PA12
– For corrosive, high humidity, long-hour exposure to UV light, or environments in low temperature.
– 3,600 hours of UV light exposure in the laboratory. Equivalent to 24 years of weathering life expectancy. (Note1)
– Excellent performance for applications in critical environments. Such as offshore, oil rigs, deserts, and cold areas.
– Suitable for attachments to galvanized surfaces.
(Note1 – The data is observed under the conditions in laboratory and cannot be used as indication of product liability.)
Material – Polyamide 12
Flammability rating – UL94HB
Color – Black
Operating Temperature -40°C ~ 95°C
Weathering Test –
庫存單位 GT-PA12-1 分類 Polyamide 12 Ties, Specialty Cable Ties Features: GT, Ultra UV-resistant, Weather-resistant
Specification Information
Certificate
Specifications
Part.No | Length | Width | Max.Bundle Dia. | Min. Loop tensile strength | Operating temperature | |||||
mm | inch | mm | inch | mm | inch | kgf | lbs | Max. | Min. | |
GT-100M-PA12 | 100 | 3.94 | 2.5 | 0.1 | 22 | 0.87 | 8.2 | 18 | 95 °C (203 °F) | -40 °C (-40 °F) |
GT-150I-PA12 | 150 | 5.91 | 3.6 | 0.14 | 35 | 1.38 | 18.2 | 40 | 95 °C (203 °F) | -40 °C (-40 °F) |
GT-200ST-PA12 | 200 | 7.87 | 4.8 | 0.19 | 50 | 1.97 | 22.6 | 50 | 95 °C (203 °F) | -40 °C (-40 °F) |
GT-250ST-PA12 | 250 | 9.84 | 4.8 | 0.19 | 60 | 2.36 | 22.6 | 50 | 95 °C (203 °F) | -40 °C (-40 °F) |
GT-300ST-PA12 | 300 | 11.81 | 4.8 | 0.19 | 76 | 2.99 | 22.6 | 50 | 95 °C (203 °F) | -40 °C (-40 °F) |
GT-370ST-PA12 | 370 | 14.57 | 4.8 | 0.19 | 102 | 4.02 | 22.6 | 50 | 95 °C (203 °F) | -40 °C (-40 °F) |
