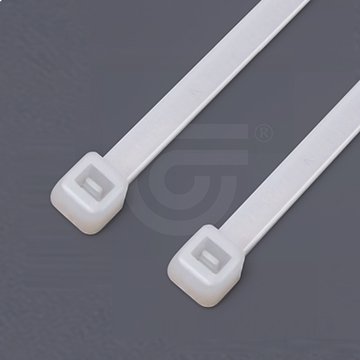

Flame Retardant Cable Ties
Model : GT-V0
– Internal serrations allowing for a positive hold onto cable and pipe bundles.
– The design of the head guarantees a high tensile strength while allowinga very low insertion force.
– UL94 V0 flame retardant
Material : UL approved Polyamide 6.6, UL94 V0
Color : Nature color
Application : Energy, Automation, Rail Transpotation, Electrical Wiring
庫存單位 GT-V0 分類 Flame Retardant Cable Ties, Specialty Cable Ties Features: Flame-retardant, GT, Low Smoke Halogen Free, Weather-resistant
Specification Information
Certificate
Specifications
Part.No | Length | Width | Max.Bundle Dia. | MIn. Loop tensile strength | operating temperature | |||||
mm | inch | mm | inch | mm | inch | kgf | lbs | Max. | Min. | |
GT-100MV0 | 100 | 3.94 | 2.5 | 0.1 | 22 | 0.87 | 8.1 | 18 | 85˚ C (185˚ F) | -40˚ C (-40˚ F) |
GT-120MV0 | 120 | 4.72 | 2.5 | 0.1 | 30 | 1.18 | 8.1 | 18 | 85˚ C (185˚ F) | -40˚ C (-40˚ F) |
GT-140MV0 | 140 | 5.51 | 3.6 | 0.14 | 33 | 1.3 | 18.2 | 40 | 85˚ C (185˚ F) | -40˚ C (-40˚ F) |
