Wall Plugs

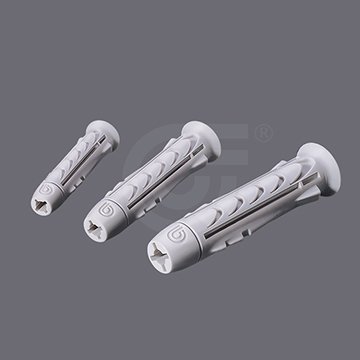

Model : WA-D
– Expansion anchors are fasteners designed for use in masonry base material that provides holding power through expansion.
– 4-way expansion form lock guarantees highest grip.
– Anti-rotation lugs prevent the plug rotating in the drill hole.
– The special spread-free neck prevents damage of tiles and plaster.
– Simple and quick push-through installation reduces installation time.
Material : UL approved Polyamide 6, 94V-2
Color : Black
Specification Information
Certificate
Specifications

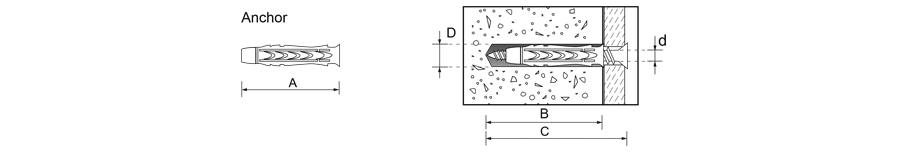

Part.No | A mm | B mm | dxC mm | D mm |
WA-D5 | 25.4 | 35 | 3~4 x 30~35 | ø5.8 |
WA-D6 | 30 | 40 | 4~5 x 35~40 | ø6 |
WA-D8 | 40 | 50 | 4.5~6 x 45~50 | ø8 |
WA-D10 | 50 | 70 | 6~7 x 55~70 | ø10 |
WA-D12 | 60 | 80 | 7~8 x 65~80 | ø12 |
