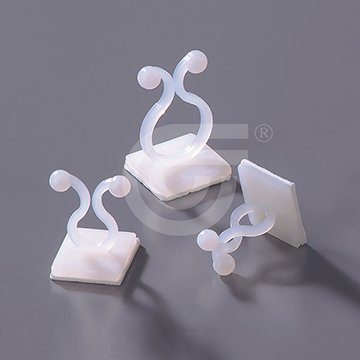

Self Adhesive Twist Locks
Model : HW-8A
– Self adhesive twist locks are designed to support light weigh wire bundles when properly applied on any clean, smooth, grease free surface. For heavy support mounting hole is provided for screws.
-To apply, simply peel off backing paper and apply mount to surface after that, cable ties can be inserted to secure wire bundles.
– Strong adhesion for quick and easy installation.
– Reusable and releasable for easy wire bundling.
– Easy open and twist fit to cables.
Material : UL Approved Polyamide 6.6, UL94 V2
Color : Black. Nature color
Application : Automation, Electrical Wiring
Specification Information
Certificate
Specifications
Part.No | A mm | A inch | B mm | B inch | C mm | C inch | D mm | D inch | E mm | E inch | F mm | F inch |
HW-8Aa | ø8.6 | 0.339 | 24.12 | 0.95 | 17 | 0.699 | 8 | 0.315 | 2 | 0.079 | ø5.4 | 0.213 |
HW-8Ab | ø16 | 0.699 | 32 | 1.26 | 20 | 0.787 | 11.7 | 0.461 | 2 | 0.079 | ø5.8 | 0.228 |
