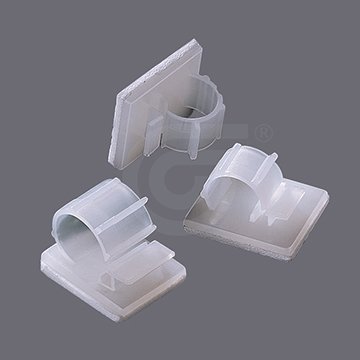

Self Adhesive Cable Wire Clamps
Model : HW-10A
– Self adhesive cable clamps are designed to support light weigh wire bundles when properly applied on any clean, smooth, grease free surface.
– For heavy support mounting hole is provided for screws.
– To apply, simply peel off backing paper and apply mount to surface after that, cable ties can be inserted to secure wire bundles.
– Wires, cables or hoses can be quickly and easily installed using these one piece fixing clips
– These clips are ideal for use in applications which are difficult to access, or for areas where self-adhesive is the only possible fixing method (for example where fixing ‘hole’ would be unacceptable)
Material : UL Approved Polyamide 6.6, UL94 V2
Color : Nature color
Application : Automation, Electrical Wiring
Specification Information
Certificate

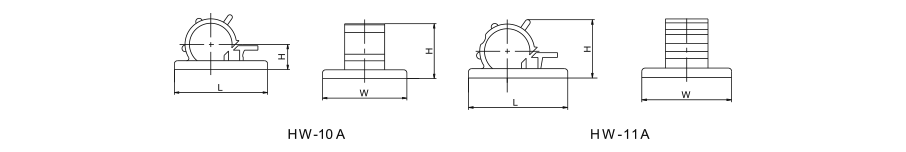

Specifications
Part.No | L mm | L inch | W mm | W inch | W1 mm | W1 inch | H mm | H inch | Max. bundle /mm | Max. bundle /inch |
HW-10A | 21.5 | 0.85 | 17 | 0.67 | 12 | 0.47 | 15 | 0.59 | 11 | 0.43 |
HW-11A | 21.5 | 0.85 | 18.2 | 0.72 | 8.4 | 0.33 | 12.3 | 0.48 | 8.7 | 0.34 |
