Self Adhesive Cable Wire Clamps
Model : ACC
– Self adhesive cable clamps are designed to support light weigh wire bundles when properly applied on any clean, smooth, grease free surface.
– For heavy support mounting hole is provided for screws.
– To apply, simply peel off backing paper and apply mount to surface after that, cable ties can be inserted to secure wire bundles.
– Wires, cables or hoses can be quickly and easily installed using these one piece fixing clips
– These clips are ideal for use in applications which are difficult to access, or for areas where self-adhesive is the only possible fixing method (for example where fixing ‘hole’ would be unacceptable)
Material : UL Approved Polyamide 6.6, UL94 V2
Color : Nature color
Application : Automation, Electrical Wiring
庫存單位 ACC 分類 Plastic Fasteners, Self Adhesive Cable Wire Clamps Features: Adhesive, Mountable, Releasable
Specification Information
Certificate

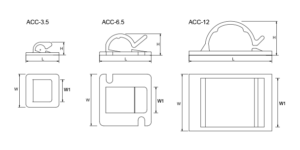

Specifications
Part.No | L mm | L inch | W mm | W inch | W1 mm | W1 inch | H mm | H inch | Max. bundle /mm | Max. bundle /inch |
ACC-3.5 | 16.1 | 0.63 | 16.1 | 0.63 | 10.8 | 0.43 | 6.2 | 0.24 | 4 | 0.16 |
ACC-6.5 | 25.1 | 0.99 | 25.1 | 0.99 | 12.6 | 0.5 | 10.4 | 0.41 | 7 | 0.28 |
ACC-12 | 33.5 | 1.32 | 27.7 | 1.09 | 23.7 | 0.93 | 16.2 | 0.64 | 13 | 0.51 |
