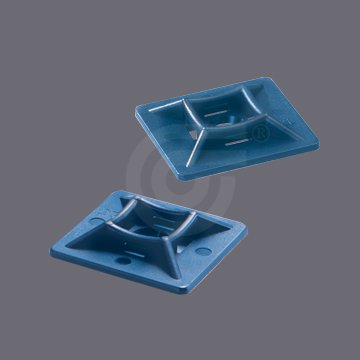

Metal Detectable Self Adhesive Cable Tie Mounts
Model : HW-2A-MD
– Designed for wiring maintenance and repair application in food processing and pharmaceutical industries
– The solution to reduce the risk of contamination from the fallen pieces of plastic wiring accessories in production line.
– Comply with FDA requirements and can support HACCP quality assurance
– Magnetic and metal detectable.
– Available in either “screw mount” or “self adhesive mount”
– Screw or bolt mounting provides excellent security when used in areas of high vibration.
– 4-way entry for cable ties enabling flexible installation.
Material – Metal particles embedded in Polyamide 6,6
Flammability rating – UL94HB
Color – Blue color. Easily visible for naked eyes
庫存單位 HW-2A-MD 分類 Metal Detectable Self Adhesive Cable Tie Mounts, Plastic Fasteners, Self Adhesive Cable Tie Mounts Features: Magnetic and Metal Detectable
Specification Information
Certificate
Specifications
Part.No | Length(L) | Width(W) | Height (H) | Mounting Hole Ø | Max. Tie Width | |||||
mm | inch | mm | inch | mm | inch | mm | inch | mm | inch | |
HW-2A-MD | 12.7 | 0.5 | 12.7 | 0.5 | 3.2 | 0.13 | * | * | 3.2 | 0.13 |
HW-3A-MD | 19 | 0.75 | 19 | 0.75 | 4.4 | 0.17 | 3.5 | 0.143 | 4 | 4 |
HW-4A-MD | 27.8 | 1.09 | 28.7 | 1.09 | 5.7 | 0.22 | 5.7 | 0.22 | 5.3 | 5.3 |
