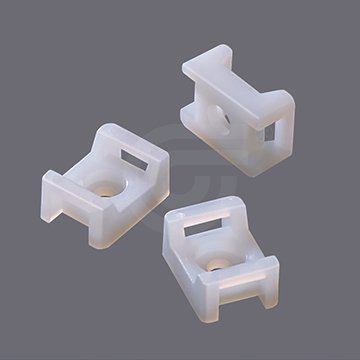

Saddle Tie Mounts

Model : TM

– Tie mounts are designed to support light weigh wire bundles when properly applied on any clean, smooth, grease free surface.
– Saddle tie mounts give additional support to the cables by means of their curved design. Simple to install with a screw or bolt they give excellent security, particularly in areas of high vibration when used in conjunction. They must offer one of the most vibration resistant fixings available.
– Designed specifically for holding heavier cable bundles these mounting bases can be used in many industries from agriculture to truck manufacture, they offer a very secure fixing and can be used with a wide variety of heavy duty cable ties up to 9.0 mm wide.


Material : UL Approved Polyamide 6.6, UL94 V2
Color : Nature color

庫存單位 TM 分類 , Features: ,

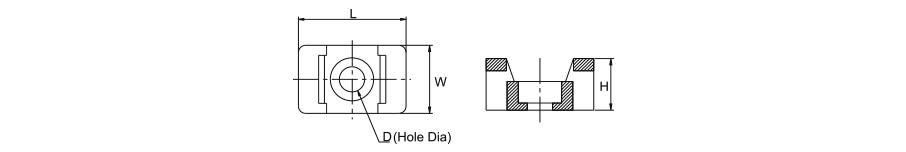

Part.NoL mmL inchW mmW inchH mmH inchD mmD inchSuitable ties
TM-2S614.90.5879.50.3747.20.283ø3.70.146ST
TM-2S814.90.5879.50.3747.20.283ø4.50.177ST
TM-3S821.90.86215.90.6269.70.382ø4.50.177HD
TM-3S1021.90.86215.90.6269.70.382ø5.00.197HD
TM-3S2521.90.86215.90.6269.70.382ø6.40.252HD
