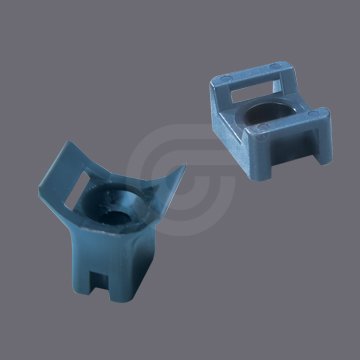

Metal Detectable Saddle Tie Mounts
Model : TM-MD
– Designed for wiring maintenance and repair application in food processing and pharmaceutical industries
– The solution to reduce the risk of contamination from the fallen pieces of plastic wiring accessories in production line.
– Comply with FDA requirements and can support HACCP quality assurance
– Magnetic and metal detectable
– Curved design provides additional support to the cable
– Provides excellent security in areas of high vibration
Material – Metal particles embedded in Polyamide 6,6
Flammability rating – UL94HB
Color – Blue color. Easily visible for naked eyes
庫存單位 TM-MD 分類 Metal Detectable Saddle Tie Mounts, Plastic Fasteners, Saddle Tie Mounts Features: Magnetic and Metal Detectable
Specification Information
Certificate
Specifications
Part.No | Length(L) | Width(W) | Height (H) | Mounting Hole Ø | Max. Tie Width | |||||
mm | inch | mm | inch | mm | inch | mm | inch | mm | inch | |
TM-2S6-MD | 14.9 | 0.59 | 9.5 | 0.37 | 7.2 | 0.28 | 3.7 | 0.15 | 4.8 | 0.19 |
TM-2S8-MD | 14.9 | 0.59 | 9.5 | 0.37 | 7.2 | 0.28 | 4.5 | 0.18 | 4.8 | 0.19 |
TM-3S8-MD | 21.9 | 0.86 | 15.9 | 0.63 | 9.7 | 0.38 | 4.5 | 0.18 | 9 | 0.35 |
TM-3S10-MD | 21.9 | 0.86 | 15.9 | 0.63 | 9.7 | 0.38 | 5 | 0.2 | 9 | 0.35 |
TM-3S25-MD | 21.9 | 0.86 | 15.9 | 0.63 | 9.7 | 0.38 | 6.4 | 0.25 | 9 | 0.35 |
TM-1A10-MD | 22.7 | 0.89 | 13.6 | 0.54 | 17.2 | 0.68 | 5 | 0.2 | 9 | 0.35 |
