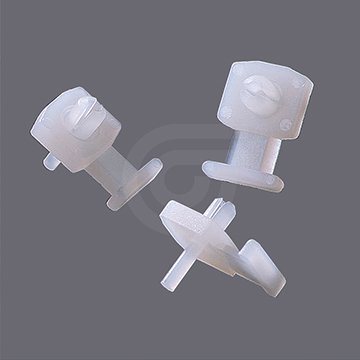

Push-In Low Profile Mounts
Model : KM
– Tie mounts are designed to support light weigh wire bundles when properly applied on any clean, smooth, grease free surface.
– The special “diagonal” design of the fixing guarantees a secure installation at all times
– Once installed the mounts offer a firm fixing a wide variety of cable ties
– The two piece “wedge” ensures that once installed the mounts will not come away from the panel, ideal for use where a high pull out force is required
– Particularly designed for the areas with restricted access
Material : UL Approved Polyamide 6.6, UL94 V2
Color : Nature color
Application : Automation, Electrical Wiring
Specification Information
Certificate
Specifications
Part.No | L mm | L inch | W mm | W inch | H1 mm | H1 inch | H2 | H2 inch | mounting hole mm(inch) | Max. Tie width mm(inch) |
KM-K36 | 18.9 | 0.74 | 12.6 | 0.5 | 5.1 | 0.2 | 3 | 0.12 | 3.6(0.14) | 4.8(0.19) |
KM-K43 | 18.9 | 0.74 | 12.6 | 0.5 | 5.1 | 0.2 | 3 | 0.12 | 4.3(0.17) | 4.8(0.19) |
KM-K50 | 18.9 | 0.74 | 12.6 | 0.5 | 5.1 | 0.2 | 3 | 0.12 | 5(0.2) | 4.8(0.19) |
