Mounting Bases

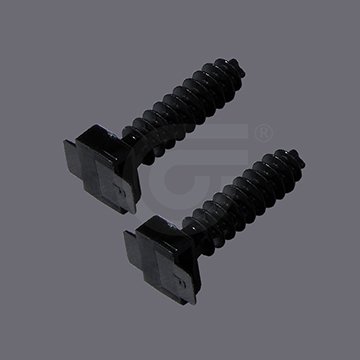

Model : TH
– Tie mounts are designed to support light weigh wire bundles when properly applied on any clean, smooth, grease free surface.
– The cable tie holders are suitable for use in a wide range of materials including, concrete, brick, block or wood. Installed by knocking into hole (depending on the material). Because of its extended head, the bundles can be located at a distance from the brickwork with the holders.
– The holders, in conjunction with a cable tie, can be used either indoors or outdoors for a diverse range of applications from holding climbing plants, to securing cables running between buildings.
– For wall plug ø8 hole diameter.
Material : UL Approved Polyamide 6.6, UL94 V2
Color : Black. Other colors are also available upon request

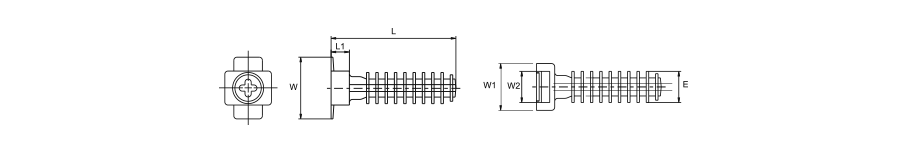

Part.No | L mm | L1 mm | W mm | W1 mm | W2 mm | E mm | Suitable ties |
TH-2 | 40.5 | 5.9 | 20 | 15 | 10 | ø9.5 | ST.HD ties |
