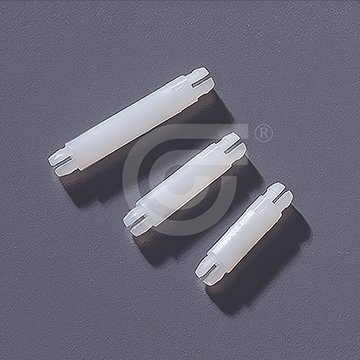

Circuit Board Bolts
Model : HSP-2N
– PCB supports are ideal for aid the support, spacing, locking and guiding of the board within electronic applications.
– Easily installed by hand to lock securely
– Easily removed y pinching prong tips
– No tools is required
Material : UL approved Polyamide 6.6, 94V-2
Color : Nature Color
Specification Information
Certificate
Specifications

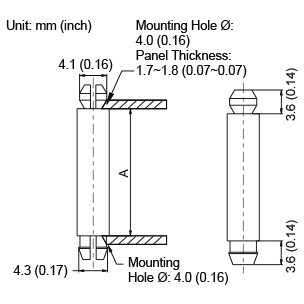

| Part.No | spacing height (A) | Operating Temperature | ||
| mm | inch | °C | °F | |
| HSP-2N | 3.2±0.3 | 0.13±0.01 | -40 ~ 85 | -40 ~ 185 |
| HSP-5N | 4.8±0.3 | 0.19±0.01 | -40 ~ 85 | -40 ~ 185 |
| HSP-6N | 6.3±0.3 | 0.25±0.01 | -40 ~ 85 | -40 ~ 185 |
| HSP-8N | 7.9±0.3 | 0.31±0.01 | -40 ~ 85 | -40 ~ 185 |
| HSP-9N | 9.4±0.3 | 0.37±0.01 | -40 ~ 85 | -40 ~ 185 |
| HSP-11N | 11.3±0.3 | 0.45±0.01 | -40 ~ 85 | -40 ~ 185 |
| HSP-13N | 12.7.±0.3 | 0.50±0.01 | -40 ~ 85 | -40 ~ 185 |
| HSP-16N | 19.1±0.3 | 0.75±0.01 | -40 ~ 85 | -40 ~ 185 |
| HSP-19N | 19.1±0.3 | 0.75±0.01 | -40 ~ 85 | -40 ~ 185 |
| HSP-22N | 22.2±0.3 | 0.87±0.01 | -40 ~ 85 | -40 ~ 185 |
