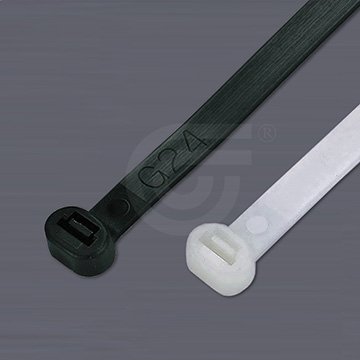

Round Head Ties
Model : GTE
– Available in a wide range of materials.
– Internal serrations allowing for a positive hold onto cable and pipe bundles.
– The design of the head guarantees a high tensile strength while allowing a very low insertion force.
Material : UL Approved Polyamide 6.6, 94V-2
Color : All colors are available
Specification Information
Certificate
Specifications

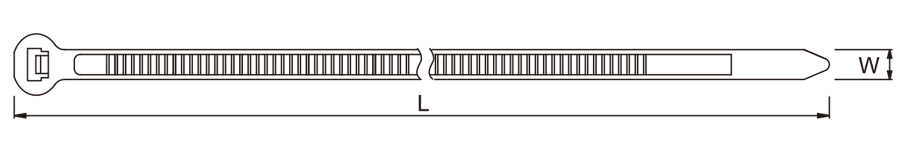

| Part.No | TYPE | Length | Width | Max.Bundle Dia. | MIn. Loop tensile strength | operating temperature | |||||
| mm | inch | mm | inch | mm | inch | kgf | lbs | Max. | Min. | ||
| GTE-100M | 1 | 100 | 3.94 | 2.5 | 0.1 | 22 | 0.87 | 9.9 | 22 | 85˚ C (185˚ F) | -40˚ C (-40˚ F) |
| GTE-140I | 1 | 140 | 5.51 | 3.6 | 0.14 | 33 | 1.3 | 21.7 | 48 | 85˚ C (185˚ F) | -40˚ C (-40˚ F) |
| GTE-200I | 1 | 200 | 7.87 | 3.6 | 0.14 | 53 | 2.09 | 21.7 | 48 | 85˚ C (185˚ F) | -40˚ C (-40˚ F) |
| GTE-190ST | 1 | 188 | 7.4 | 4.8 | 0.19 | 46 | 1.81 | 25.9 | 57 | 85˚ C (185˚ F) | -40˚ C (-40˚ F) |
| GTE-430HD | 2 | 430 | 16.93 | 7.6 | 0.3 | 110 | 4.33 | 64.9 | 143 | 85˚ C (185˚ F) | -40˚ C (-40˚ F) |
