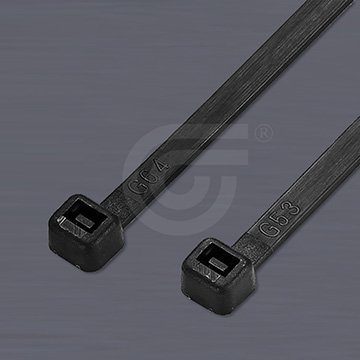

Model : GT
-Internal serrations allowing for a positive hold onto cable and pipe bundles.
-The design of the head guarantees a high tensile strength while allowing a very low insertion force.
Material : UL approved Polyamide 6.6, 94V-2
Color : Nature color, black
Specification Information
Certificate
Specifications
| Part.No | Length | Width | Max.Bundle Dia. | MIn. Loop tensile strength | operating temperature | |||||
| mm | inch | mm | inch | mm | inch | kgf | lbs | Max. | Min. | |
| GT-80M | 80 | 3.15 | 2.4 | 0.09 | 15 | 0.59 | 8.2 | 18 | 85˚ C (185˚ F) | -40˚ C (-40˚ F) |
| GT-100M | 100 | 3.94 | 2.5 | 0.1 | 22 | 0.87 | 8.2 | 18 | 85˚ C (185˚ F) | -40˚ C (-40˚ F) |
| GT-120M | 120 | 4.72 | 2.5 | 0.1 | 30 | 1.18 | 8.2 | 18 | 85˚ C (185˚ F) | -40˚ C (-40˚ F) |
| GT-140M | 140 | 5.51 | 2.5 | 0.1 | 33 | 1.3 | 8.2 | 18 | 85˚ C (185˚ F) | -40˚ C (-40˚ F) |
| GT-160M | 160 | 6.3 | 2.5 | 0.1 | 40 | 1.57 | 8.2 | 18 | 85˚ C (185˚ F) | -40˚ C (-40˚ F) |
| GT-200M | 200 | 7.87 | 2.5 | 0.1 | 53 | 2.09 | 8.2 | 18 | 85˚ C (185˚ F) | -40˚ C (-40˚ F) |
| GT-250M | 250 | 9.84 | 2.8 | 0.11 | 65 | 2.56 | 14 | 31 | 85˚ C (185˚ F) | -40˚ C (-40˚ F) |
| GT-300M | 300 | 11.81 | 2.8 | 0.11 | 76 | 2.99 | 14 | 31 | 85˚ C (185˚ F) | -40˚ C (-40˚ F) |
| GT-120I | 120 | 4.72 | 3.6 | 0.14 | 30 | 1.18 | 18.2 | 40 | 85˚ C (185˚ F) | -40˚ C (-40˚ F) |
| GT-140I | 140 | 5.51 | 3.6 | 0.14 | 33 | 1.3 | 18.2 | 40 | 85˚ C (185˚ F) | -40˚ C (-40˚ F) |
| GT-150I | 150 | 5.91 | 3.6 | 0.14 | 35 | 1.38 | 18.2 | 40 | 85˚ C (185˚ F) | -40˚ C (-40˚ F) |
| GT-180I | 180 | 7.09 | 3.6 | 0.14 | 44 | 1.73 | 18.2 | 40 | 85˚ C (185˚ F) | -40˚ C (-40˚ F) |
| GT-200I | 200 | 7.87 | 3.6 | 0.14 | 53 | 2.09 | 18.2 | 40 | 85˚ C (185˚ F) | -40˚ C (-40˚ F) |
| GT-250I | 250 | 9.84 | 3.6 | 0.14 | 65 | 2.56 | 18.2 | 40 | 85˚ C (185˚ F) | -40˚ C (-40˚ F) |
| GT-300I | 300 | 11.81 | 3.6 | 0.14 | 76 | 2.99 | 18.2 | 40 | 85˚ C (185˚ F) | -40˚ C (-40˚ F) |
| GT-370I | 370 | 14.57 | 3.6 | 0.14 | 102 | 4.02 | 18.2 | 40 | 85˚ C (185˚ F) | -40˚ C (-40˚ F) |
| GT-120ST | 120 | 4.72 | 4.8 | 0.19 | 24 | 0.94 | 22.6 | 50 | 85˚ C (185˚ F) | -40˚ C (-40˚ F) |
| GT-160ST | 160 | 6.3 | 4.8 | 0.19 | 38 | 1.5 | 22.6 | 50 | 85˚ C (185˚ F) | -40˚ C (-40˚ F) |
| GT-190ST | 190 | 7.48 | 4.8 | 0.19 | 46 | 1.81 | 22.6 | 50 | 85˚ C (185˚ F) | -40˚ C (-40˚ F) |
| GT-200ST | 200 | 7.87 | 4.8 | 0.19 | 50 | 1.97 | 22.6 | 50 | 85˚ C (185˚ F) | -40˚ C (-40˚ F) |
| GT-250ST | 250 | 9.84 | 4.8 | 0.19 | 60 | 2.36 | 22.6 | 50 | 85˚ C (185˚ F) | -40˚ C (-40˚ F) |
| GT-280ST | 280 | 11.02 | 4.8 | 0.19 | 70 | 2.76 | 22.6 | 50 | 85˚ C (185˚ F) | -40˚ C (-40˚ F) |
| GT-300ST | 300 | 11.81 | 4.8 | 0.19 | 76 | 2.99 | 22.6 | 50 | 85˚ C (185˚ F) | -40˚ C (-40˚ F) |
| GT-370ST | 370 | 14.57 | 4.8 | 0.19 | 102 | 4.02 | 22.6 | 50 | 85˚ C (185˚ F) | -40˚ C (-40˚ F) |
| GT-390ST | 390 | 15.35 | 4.8 | 0.19 | 105 | 4.13 | 22.6 | 50 | 85˚ C (185˚ F) | -40˚ C (-40˚ F) |
| GT-430ST | 430 | 16.93 | 4.8 | 0.19 | 110 | 4.33 | 22.6 | 50 | 85˚ C (185˚ F) | -40˚ C (-40˚ F) |
| GT-450ST | 450 | 17.72 | 4.8 | 0.19 | 116 | 4.57 | 22.6 | 50 | 85˚ C (185˚ F) | -40˚ C (-40˚ F) |
| GT-530ST | 530 | 20.87 | 4.8 | 0.19 | 140 | 5.51 | 22.6 | 50 | 85˚ C (185˚ F) | -40˚ C (-40˚ F) |
| GT-150HD | 150 | 5.91 | 7.6 | 0.3 | 33 | 1.3 | 54.5 | 120 | 85˚ C (185˚ F) | -40˚ C (-40˚ F) |
| GT-200HD | 200 | 7.87 | 7.6 | 0.3 | 50 | 1.97 | 54.5 | 120 | 85˚ C (185˚ F) | -40˚ C (-40˚ F) |
| GT-250HD | 250 | 9.84 | 7.6 | 0.3 | 65 | 2.56 | 54.5 | 120 | 85˚ C (185˚ F) | -40˚ C (-40˚ F) |
| GT-300HD | 300 | 11.81 | 7.6 | 0.3 | 76 | 2.99 | 54.5 | 120 | 85˚ C (185˚ F) | -40˚ C (-40˚ F) |
| GT-370HD | 370 | 14.57 | 7.6 | 0.3 | 102 | 4.02 | 54.5 | 120 | 85˚ C (185˚ F) | -40˚ C (-40˚ F) |
| GT-430HD-S | 430 | 16.93 | 7.6 | 0.3 | 125 | 4.92 | 54.5 | 120 | 85˚ C (185˚ F) | -40˚ C (-40˚ F) |
| GT-450HD-S | 450 | 17.72 | 7.6 | 0.3 | 132 | 5.20 | 54.5 | 120 | 85˚ C (185˚ F) | -40˚ C (-40˚ F) |
| GT-540HD-S | 533 | 20.98 | 7.6 | 0.3 | 140 | 5.51 | 54.5 | 120 | 85˚ C (185˚ F) | -40˚ C (-40˚ F) |
| GT-430HD | 430 | 16.93 | 9 | 0.35 | 120 | 4.72 | 79.3 | 175 | 85˚ C (185˚ F) | -40˚ C (-40˚ F) |
| GT-530HD | 530 | 20.87 | 9 | 0.35 | 140 | 5.51 | 79.3 | 175 | 85˚ C (185˚ F) | -40˚ C (-40˚ F) |
| GT-630HD | 609 | 23.98 | 9 | 0.35 | 178 | 7.01 | 79.3 | 175 | 85˚ C (185˚ F) | -40˚ C (-40˚ F) |
| GT-710HD | 710 | 27.95 | 9 | 0.35 | 190 | 7.48 | 79.3 | 175 | 85˚ C (185˚ F) | -40˚ C (-40˚ F) |
| GT-780HD | 778 | 30.63 | 9 | 0.35 | 228 | 8.99 | 79.3 | 175 | 85˚ C (185˚ F) | -40˚ C (-40˚ F) |
| GT-830HD | 815 | 32.09 | 9 | 0.35 | 239 | 9.42 | 79.3 | 175 | 85˚ C (185˚ F) | -40˚ C (-40˚ F) |
| GT-920HD | 916 | 36.06 | 9 | 0.35 | 263 | 10.35 | 79.3 | 175 | 85˚ C (185˚ F) | -40˚ C (-40˚ F) |
| GT-1220HD | 1220 | 48.03 | 9 | 0.35 | 365 | 14.37 | 79.3 | 175 | 85˚ C (185˚ F) | -40˚ C (-40˚ F) |
| GT-1530HD | 1530 | 60.24 | 9 | 0.35 | 460 | 18.11 | 79.3 | 175 | 85˚ C (185˚ F) | -40˚ C (-40˚ F) |
