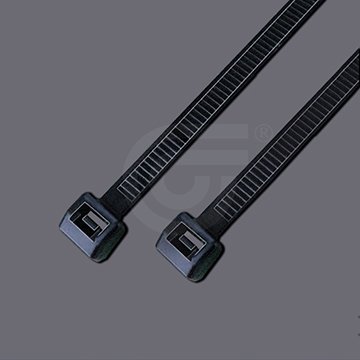

Outside Serrated Ties
Model : GTPG
– Outside serrated cable ties are designed to reduce abrasion on sensitive wires, cables and hoses.
– Minimizing the damage to the surface of the strapped object because of the flat surface
– Smooth and easy apply to bundle due to the flat surface
Material : UL approved Polyamide 6.6, 94V-2
Color : All colors are available upon request
Specification Information
Certificate

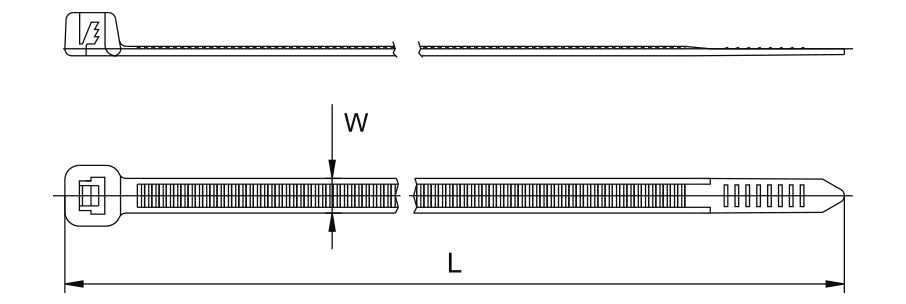

Specifications
| Part.No | Length | Width | Max. Bundle Dia. | MIn. Loop tensile strength | Operating Temperature | |||||
| mm | inch | mm | inch | mm | inch | kgf | lbs | Max. | Min. | |
| GTPG-100M | 100 | 3.94 | 2.5 | 0.1 | 22 | 0.87 | 8.2 | 18 | 85˚ C 185˚ F | -40˚ C -40˚ F |
| GTPG-200ST | 200 | 7.87 | 4.8 | 0.19 | 50 | 1.97 | 22.6 | 50 | 85˚ C 185˚ F | -40˚ C -40˚ F |
| GTPG-300ST | 300 | 11.81 | 4.8 | 0.19 | 76 | 2.99 | 22.6 | 50 | 85˚ C 185˚ F | -40˚ C -40˚ F |
| GTPG-370ST | 370 | 14.57 | 4.8 | 0.19 | 102 | 4.02 | 22.6 | 50 | 85˚ C 185˚ F | -40˚ C -40˚ F |
| GTPG-390HD | 390 | 15.35 | 7.6 | 0.3 | 110 | 4.33 | 54.4 | 120 | 85˚ C 185˚ F | -40˚ C -40˚ F |
