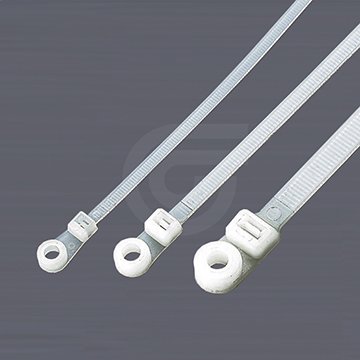

Mountable Head Ties
Model : GTM
– These screw mount cable ties have a built in mounting holes.
– Once fastened around the cables the bundle can be simply secured to the panel with a screw or bolt.
Material : UL approved Polyamide 6.6, 94V-2
Color : All colors are available
Specification Information
Certificate

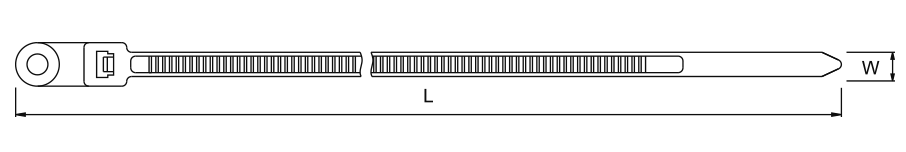

Specifications
| Part.No | Length | Width | Max.Bundle Dia. | MIn. Loop tensile strength | hole diameter | operating temperature | |||||||
| mm | inch | mm | inch | mm | inch | kgf | lbs | mm | inch | screw | Max. | Min. | |
| GTM-110M | 110 | 4.33 | 2.5 | 0.1 | 22 | 0.87 | 8.2 | 18 | Ø3.2 | 0.13 | M3 | 85˚ C 185˚ F | -40˚ C -40˚ F |
| GTM-150I | 150 | 5.91 | 3.6 | 0.14 | 32 | 1.26 | 18.2 | 40 | Ø4.2 | 0.17 | M4 | 85˚ C 185˚ F | -40˚ C -40˚ F |
| GTM-200ST | 200 | 7.87 | 4.8 | 0.19 | 47 | 1.85 | 22.6 | 50 | Ø5.2 | 0.2 | M5 | 85˚ C 185˚ F | -40˚ C -40˚ F |
| GTM-216ST | 216 | 8.5 | 4.8 | 0.19 | 53 | 2.09 | 22.6 | 50 | Ø5.2 | 0.2 | M5 | 85˚ C 185˚ F | -40˚ C -40˚ F |
| GTM-300ST | 309 | 12.17 | 4.8 | 0.19 | 76 | 2.99 | 22.6 | 50 | Ø5.2 | 0.2 | M5 | 85˚ C 185˚ F | -40˚ C -40˚ F |
| GTM-370ST | 380 | 14.96 | 4.8 | 0.19 | 102 | 4.02 | 22.6 | 50 | Ø5.5 | 0.2 | M5 | 85˚ C 185˚ F | -40˚ C -40˚ F |
| GTM-200HD | 215 | 8.46 | 7.6 | 0.3 | 47 | 1.85 | 54.5 | 120 | Ø5.7 | 0.22 | M5 | 85˚ C 185˚ F | -40˚ C -40˚ F |
| GTM-300HD | 313 | 12.32 | 7.6 | 0.3 | 76 | 2.99 | 54.5 | 120 | Ø5.7 | 0.22 | M5 | 85˚ C 185˚ F | -40˚ C -40˚ F |
| GTM-380HD | 382 | 15.04 | 7.6 | 0.3 | 98 | 3.86 | 54.5 | 120 | Ø5.7 | 0.22 | M6 | 85˚ C 185˚ F | -40˚ C -40˚ F |
