All Products

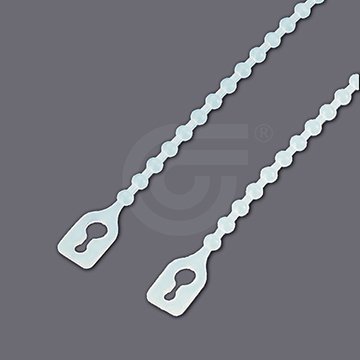

Bead Ties
Model : GTB
– Cable ties for bundling and holding items together, primarily electrical cables or wires. These cable ties are finding use in a wide range of other applications.
– The extended pawl allows for simple and quick release of the ties
– Releasable Cable Ties can be smoothly adjusted for exactly the right fit around a bundle of cables and provide you with less risk of over-tightening
– Permits easy release and re-use where changes are anticipated during development, production or servicing in the field
– Releasable Cable Ties can reopened and reused over and over again, preventing waste and saving you money
Material : UL approved Polyamide 6.6, 94V-2
Color : All colors are available
Application : Automation, Electrical Wiring
Specification Information
Certificate
Specifications

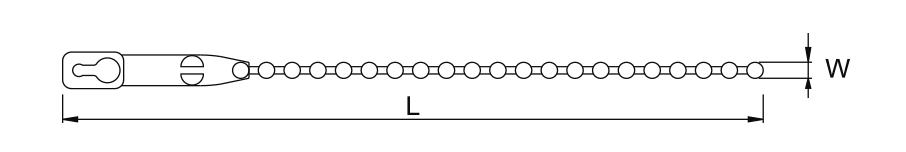

Part.No | Length | Width | Max.Bundle Dia. | MIn. Loop tensile strength | Mounting hole | Panel Thickness | operating temperature | ||||||
mm | inch | mm | inch | mm | inch | kgf | lbs | mm/inch | mm | inch | Max. | Min. | |

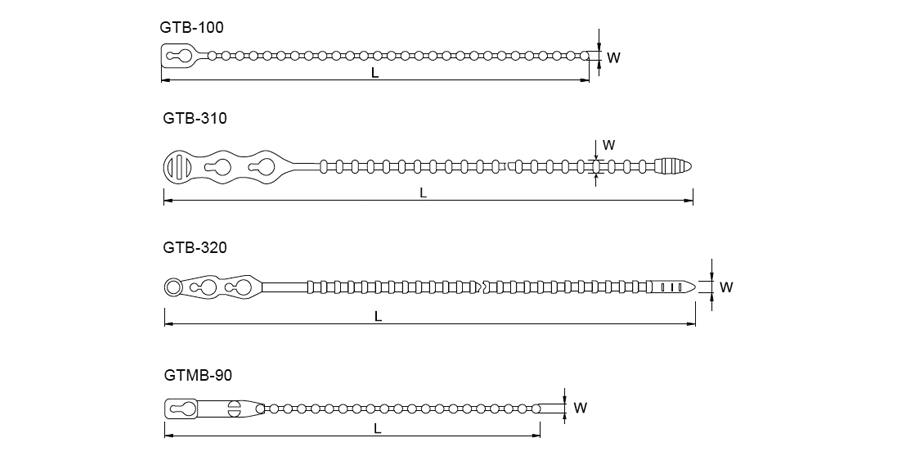

GTB-100 | 107 | 4.21 | 2.3 | 0.09 | 29 | 1.14 | 4.1 | 9 | – | – | – | 85˚ C (185˚ F) | -40˚ C (-40˚ F) |
GTB-310 | 316 | 12.44 | 4.4 | 0.17 | 80 | 3.15 | 31.8 | 70 | – | – | – | 85˚ C (185˚ F) | -40˚ C (-40˚ F) |
GTB-320 | 322 | 12.68 | 4.4 | 0.17 | 90 | 3.54 | 4.1 | 9 | – | – | – | 85˚ C (185˚ F) | -40˚ C (-40˚ F) |
