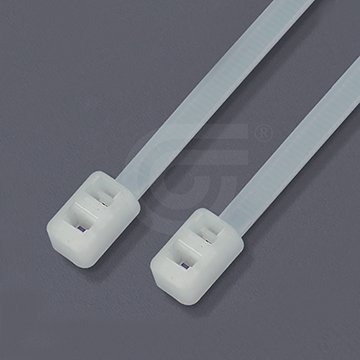

Double Loop Ties
Model : GTB
– Cable ties for bundling and holding items together, primarily electrical cables or wires. These cable ties are finding use in a wide range of other applications.
– The extended pawl allows for simple and quick release of the ties
– Releasable Cable Ties can be smoothly adjusted for exactly the right fit around a bundle of cables and provide you with less risk of over-tightening
– Permits easy release and re-use where changes are anticipated during development, production or servicing in the field
– Releasable Cable Ties can reopened and reused over and over again, preventing waste and saving you money
Material : UL approved Polyamide 6.6, 94V-2
Color : All colors are available
Application : Automation, Electrical Wiring
Specification Information
Certificate

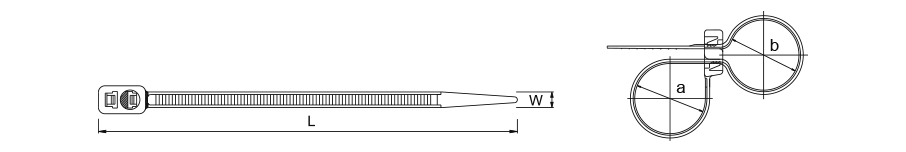

Specifications
Part.No | Length | Width | Max.Bundle Dia. | MIn. Loop tensile strength | operating temperature | |||||
mm | inch | mm | inch | mm | inch | kgf | lbs | Max. | Min. | |
GTB-200ST | 195 | 7.68 | 4.8 | 0.19 | a:Ø47 b:Ø45 | a:Ø1.85 b:Ø1.77 | 22.6 | 50 | 85˚ C (185˚ F) | -40˚ C (-40˚ F) |
GTB-300ST | 303 | 11.93 | 4.8 | 0.19 | a:Ø72 b:Ø70 | a:Ø2.83 b:Ø2.76 | 22.6 | 50 | 85˚ C (185˚ F) | -40˚ C (-40˚ F) |
GTB-370ST | 372 | 14.65 | 4.8 | 0.19 | a:Ø100 b:Ø97 | a:Ø3.94 b:Ø3.82 | 22.6 | 50 | 85˚ C (185˚ F) | -40˚ C (-40˚ F) |
