Button Head Ties
Model : GTA
– Button head ties are used for normal bundling and through-panel applications.
– Unique two-pieces design allows tie to secure a bundle directly to a chassis or panel
– Releasable prior to final tensioning for bundle modifications
– For indoor use
– Used for normal bundling and through-panel applications
– Small head height allows more efficient use of space in compact areas
Material : UL approved Polyamide 6.6, 94V-2
Color : All colors are available upon request
Application : Automation, Electrical Wiring
Specification Information
Certificate
Specifications

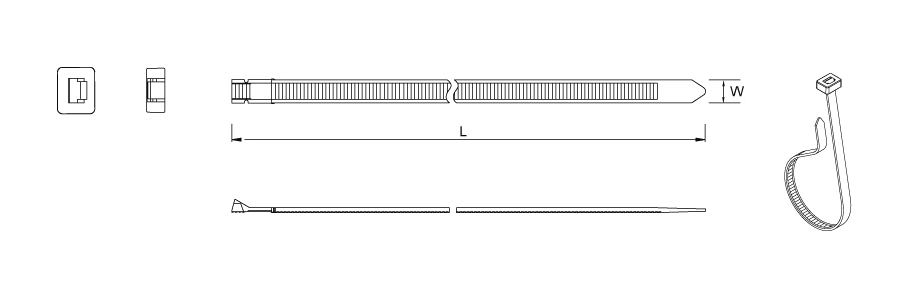

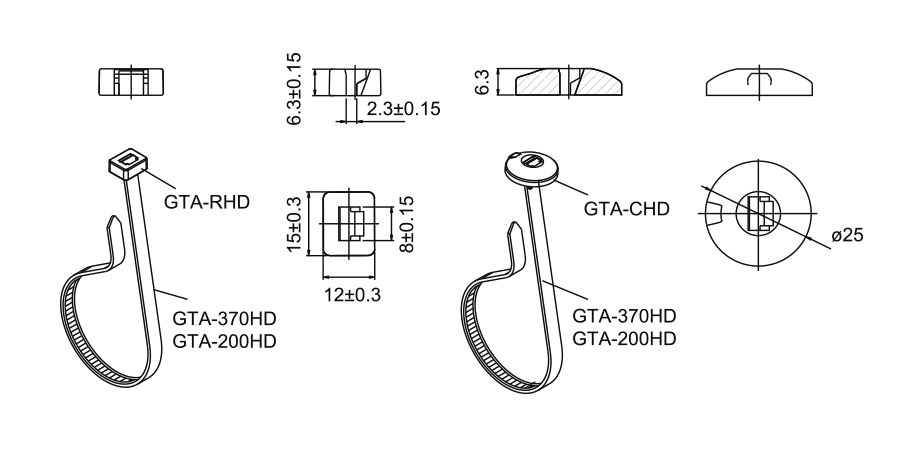

Part.No | Length | Width | Max.Bundle Dia. | MIn. Loop tensile strength | operating temperature | |||||
mm | inch | mm | inch | mm | inch | kgf | lbs | Max. | Min. | |
GTA-200CHD | 200 | 7.87 | 7.6 | 0.3 | 50 | 1.97 | 65.4 | 144 | 85˚ C 185˚ F | -40˚ C -40˚ F |
GTA-200RHD | 200 | 7.87 | 7.6 | 0.3 | 50 | 1.97 | 65.4 | 144 | 85˚ C 185˚ F | -40˚ C -40˚ F |
GTA-370CHD | 370 | 14.57 | 7.6 | 0.3 | 101 | 3.98 | 65.4 | 144 | 85˚ C 185˚ F | -40˚ C -40˚ F |
GTA-370RHD | 370 | 14.57 | 7.6 | 0.3 | 101 | 3.98 | 65.4 | 144 | 85˚ C 185˚ F | -40˚ C -40˚ F |
