All Products
Wrapping Bands
Model : GST

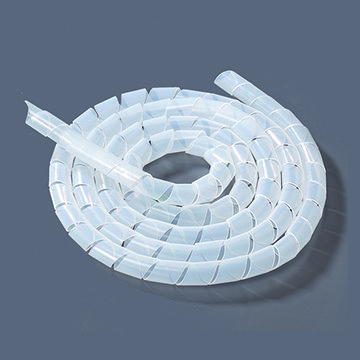

Spiral wrapping bands are perfect for organizing and protecting your wiring and cables. It helps eliminate accidents that can be caused by loose cords and provides a neat appearance for any entertainment system or office setting. The spiral wrapping band not only protects cables from abrasion, but allows breakouts of single or multiple cables for re-routing or replacement.
-Spiral Wrapping Band provides superior abrasion resistance and additional rigidity for bundling and protection of electrical cables and wires.
-The spiral structure provides cable can branch out at any point and in any direction
Material : PE
Color : Nature, Black
Application : Automation, Electrical Wiring
庫存單位 GST 分類 Cable Protection, Spiral Cable Bindings Features: Flame-retardant, Low Smoke Halogen Free, Releasable
Specification Information
Certificate
Specifications

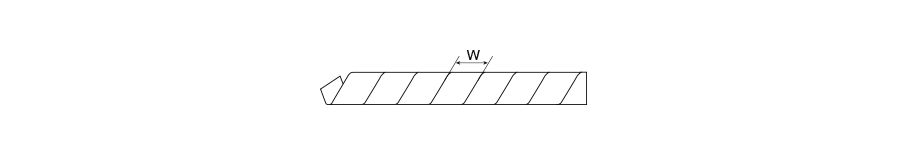

Part No. | In-Diameter mm (Inch) | Out-Dlamflter mm(lnch) | w mm (lnch) | Wrapping Range mm (lnch) |
GST-4 | 5.0 (0.20) | 6.0 (0.24) | 7.0 (0.28) | 4.0-50.0 (0.16-1.97) |
GST-6 | 7.0 (0.28) | 8.0 (0.31) | 10.8 (0.43) | 6.0-60.0 (0.24-2.36) |
GST-8 | 8.5 (0.33) | 10.0 (0.39) | 11.4 (0.45) | 7.5-60.0 (0.30-2.36) |
GST-9 | 10.2 (0.40) | 12.0 (0.47) | 13.9 (0.55) | 9.0-65.0 (0.35-2.56) |
GST-12 | 13.0 (0.51) | 15.0 (0.59) | 15.0 (0.59) | 12.0-70.0 (0.47-2.76) |
GST-15 | 16.4 (0.65) | 19.0 (0.75) | 18.2 (0.72) | 15.0-100.0 (0.59-3.94) |
GST-20 | 21.0 (0.83) | 24.0 (0.94) | 19.6 (0.77) | 20.0-130.0 (0.79-5.12) |
GST-4-VO | 5.0 (0.20) | 6.0 (0.24) | 7.0 (0.28) | 4.0-50.0 (0.16-1.97) |
GST-6-VO | 7.0 (0.28) | 8.0 (0.31) | 10.8 (0.43) | 6.0-60.0 (0.24-2.36) |
GST-8-VO | 8.5 (0.33) | 10.0 (0.39) | 11.4 (0.45) | 7.5-60.0 (0.30-2.36) |
GST-9-VO | 10.2 (0.40) | 12.0 (0.47) | 13.9 (0.55) | 9.0-65.0 (0.35-2.56) |
GST-12-VO | 13.0 (0.51) | 15.0 (0.59) | 15.0 (0.59) | 12.0-70.0 (0.47-2.76) |
GST-15-VO | 16.4 (0.65) | 19.0 (0.75) | 18.2 (0.72) | 15.0-100.0 (0.59-3.94) |
GST-20-VO | 21.0 (0.83) | 24.0 (0.94) | 19.6 (0.77) | 20.0-130.0 (0.79-5.12) |
