Button Tubes
Model : FBT

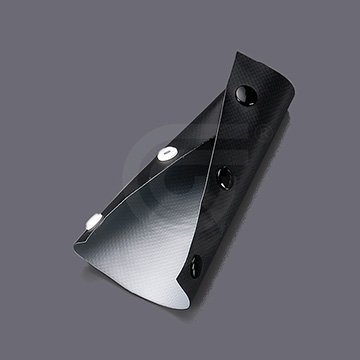

Button Tarpaulin is designed for easily managing the wires or cables, It is reusable.
-Easy to wrap and re-usable
-The design of button locking to prevent accidental opening.
-Tarpaulin provides high strength and enhanced tear resistance, flame retardant, corrosion resistant for protect or bundle hoses, tubes,and cables.
Material : Refractory a meshes mezzanine PVC + Button Material: POM
Color : Black, Gray
Application : Automation, Electrical Wiring
庫存單位 FBT 分類 Cable Protection, Hook & Loop Tubes Features: Releasable, UV-resistant, Weather-resistant
Specification Information
Certificate

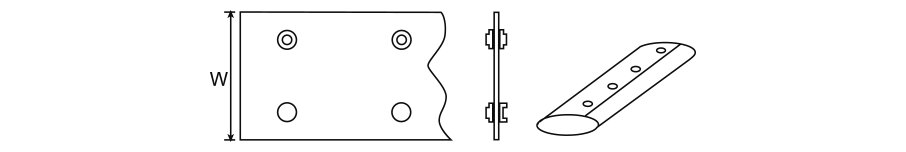

Specifications
Part No. | Max Bundle Dia (mm) | Band Width (mm) |
FBT-10 | Ø10 | 55 |
FBT-15 | Ø15 | 75 |
FBT-20 | Ø20 | 90 |
FBT-25 | Ø25 | 100 |
FBT-30 | Ø30 | 115 |
FBT-40 | Ø40 | 146 |
FBT-50 | Ø50 | 175 |
FBT-70 | Ø70 | 241 |
FBT-100 | Ø100 | 333 |
