All Products
Cable Clamps

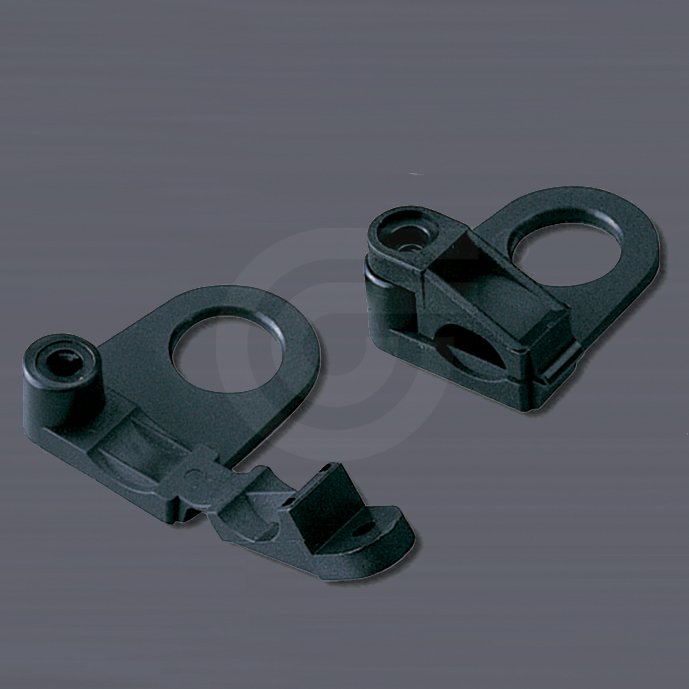

Model :5462/10
Bushings are intended to insulate and protect from abrasion one or more conductors that pass through it.
-Acting as a bushing to protect the cable, a stress relief to avoid pulling the wires from their connections and the possibility to terminate the cables, the cable clamps restraints are simple to install using just one screw
Material : UL approved Polyamide 6.6, 94V-2
Color : Nature, Black
Specification Information
Certificate
Specifications
| Part.No | L mm | L inch | W mm | W inch | H1 mm | H1 inch | H2 | H2 inch | mounting hole mm(inch) | Max. Tie width mm(inch) |
| KM-K36 | 18.9 | 0.74 | 12.6 | 0.5 | 5.1 | 0.2 | 3 | 0.12 | 3.6(0.14) | 4.8(0.19) |
| KM-K43 | 18.9 | 0.74 | 12.6 | 0.5 | 5.1 | 0.2 | 3 | 0.12 | 4.3(0.17) | 4.8(0.19) |
| KM-K50 | 18.9 | 0.74 | 12.6 | 0.5 | 5.1 | 0.2 | 3 | 0.12 | 5(0.2) | 4.8(0.19) |
