All Products

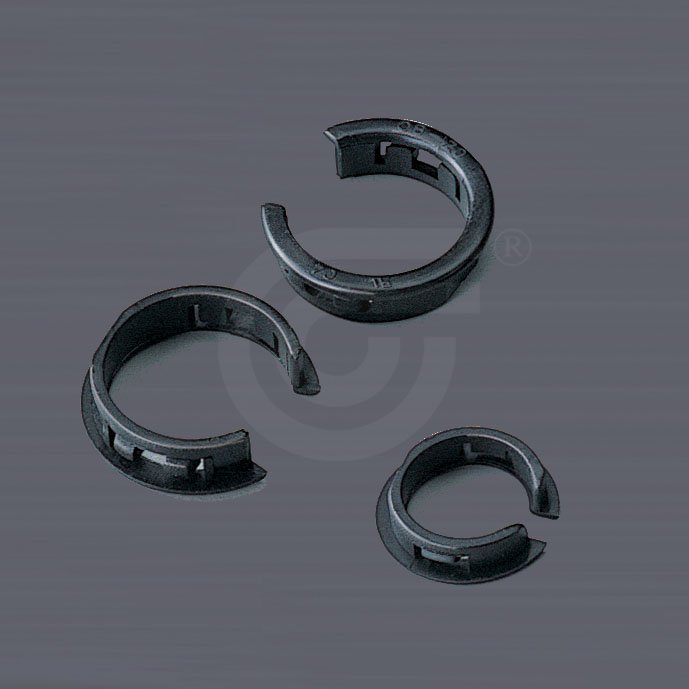

Open Bushings
Model :OB
Bushings are intended to insulate and protect from abrasion one or more conductors that pass through it.
-Protect power cord and smooth you chassis hole
-Easy installation, No tool is needed
-Can be applied after power cable was installed
Material : UL approved Polyamide 6.6, 94V-2
Color : Black
庫存單位 OB 分類 Bushings, Cable Protection
Specification Information
Certificate
Specifications

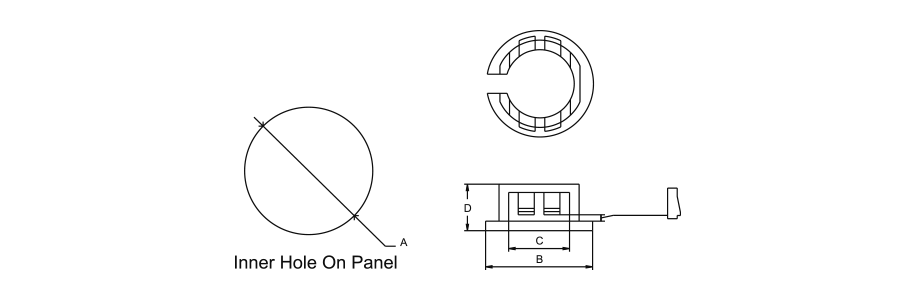

Part No. | A mm | A inch | B mm | B inch | C mm | C inch | D mm | D inch |
OB-12 | ø12.7 | 0.5 | ø16.8 | 0.66 | ø10.8 | 0.43 | 7.3 | 0.29 |
OB-16 | ø15.9 | 0.63 | ø20.3 | 0.8 | ø14.1 | 0.56 | 7.3 | 0.29 |
OB-19 | ø19 | 0.75 | ø22.5 | 0.89 | ø16.5 | 0.65 | 7.3 | 0.29 |
OB-20 | ø19.5 | 0.77 | ø26.0 | 1.02 | ø20 | 0.79 | 7.2 | 0.28 |
OB-21 | ø22.2 | 0.87 | ø24.6 | 0.97 | ø19.2 | 0.76 | 7.5 | 0.3 |
OB-22 | ø22.0 | 0.87 | ø26.0 | 1.02 | ø20 | 0.79 | 7.3 | 0.29 |
