Hole Plugs

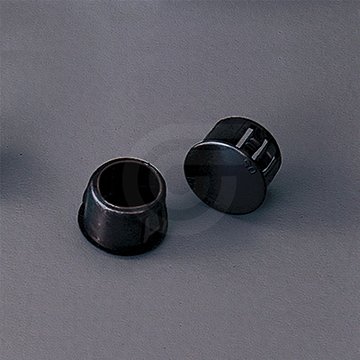

Model :M-13
Bushings are intended to insulate and protect from abrasion one or more conductors that pass through it.
-Easy installation, No tool is required
-Ideal for closing panel cavity
Material : UL approved Polyamide 6.6, 94V-2
Color : Black
庫存單位 M-13 分類 Bushings, Cable Protection
Specification Information
Certificate
Specifications

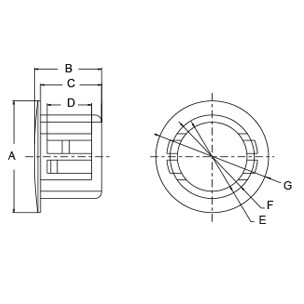

Part No. | A mm | A inch | B mm | B inch | C mm | C inch | D mm | D inch | E mm | E inch | F mm | F inch | G mm | G inch |
M-13 | ø17 | ø0.67 | 10.1 | 0.4 | 9.2 | 0.36 | 6.7 | 0.26 | ø10.5 | ø0.41 | ø12.7 | ø0.5 | ø14.6 | ø0.57 |
